MORRFlate TenSix™ Portable 12v Off Road Air Compressor – Gen2

• 10.6 CFM dual cylinder compressor at 0 PSI
• 6.5 CFM at 30 psi
• 150 psi rated
• PSI Cutoff Switch (80psi on, 120psi off)
• Thermal Cutoff Switch & Purge Valve

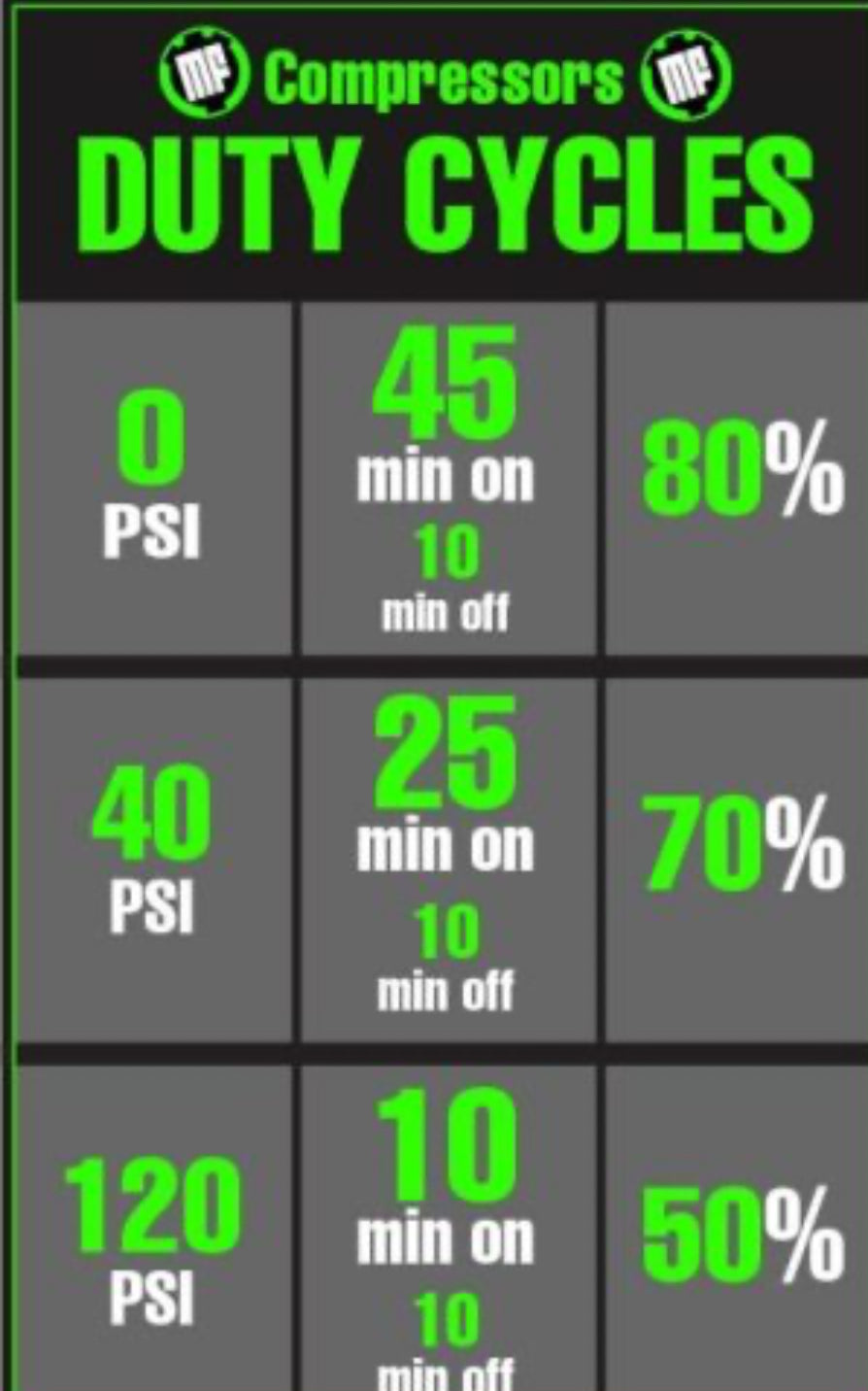

• 80% duty cycle @ 0psi (45min on, 10min off) (6-8 vehicles) (see duty cycle chart)
• 12v, 90amps peak, ~50amp running
• 14x7x9″ external dimensions
• 70-75 dB noise level from 1ft distance

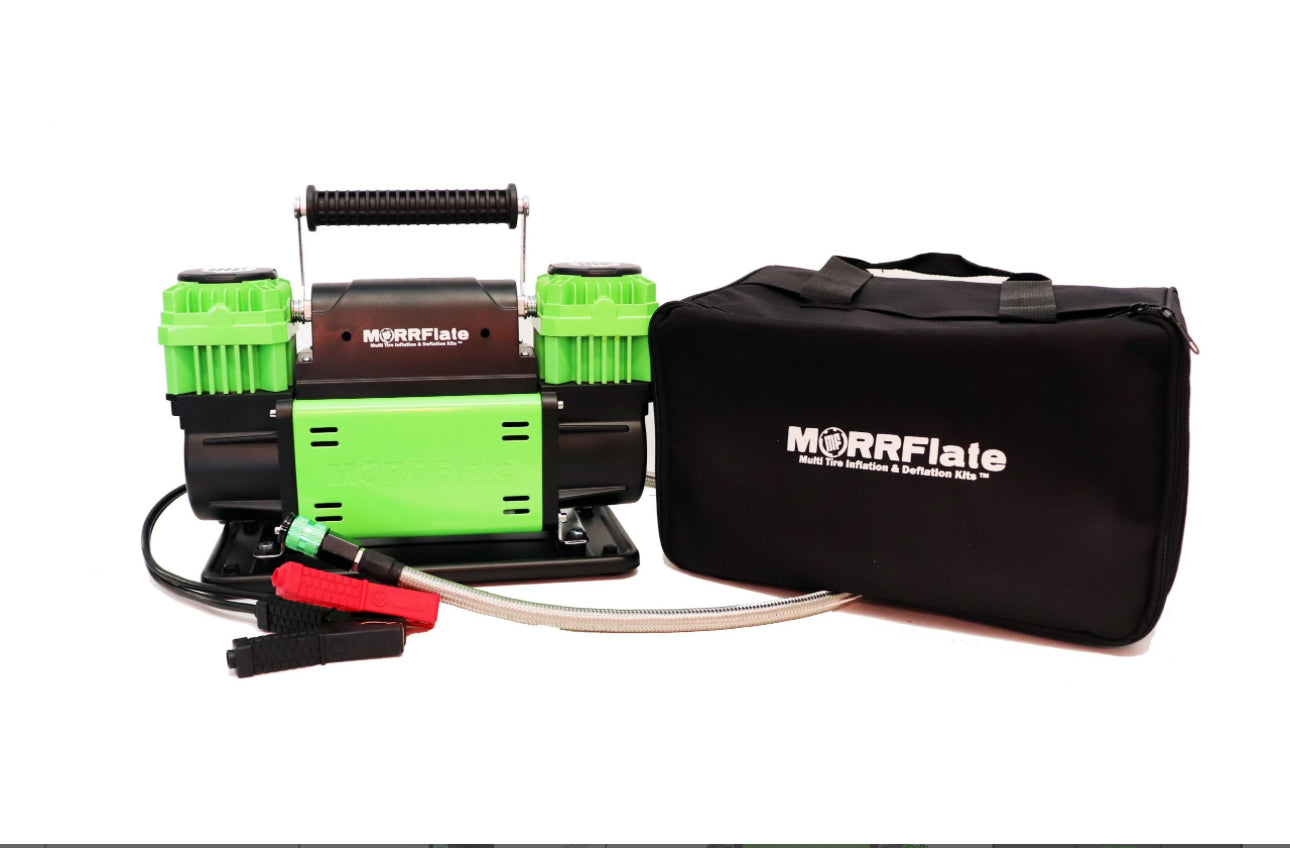

• Beefed up carrying bag with accessory pockets
• Threaded filter caps so the compressor can now be mounted in any direction/orientation (except upside down)
• USA Standard color matched air fitting – Push-to-connect “Universal” Coupler (Works with 1/4″ Industrial, Auto, or Aro fittings)
• WARNING: Compressors get hot! Recommended to wear the included MORRFlate Groovy Gloveswhile disconnecting air fittings.
• Since the TenSix™ is rated for 10.6 CFM, it is highly recommended to use with a MORRFlate 4 Tire Inflation & Deflation™ Kit to avoid back pressures on the compressor from filling 1 tire at a time.

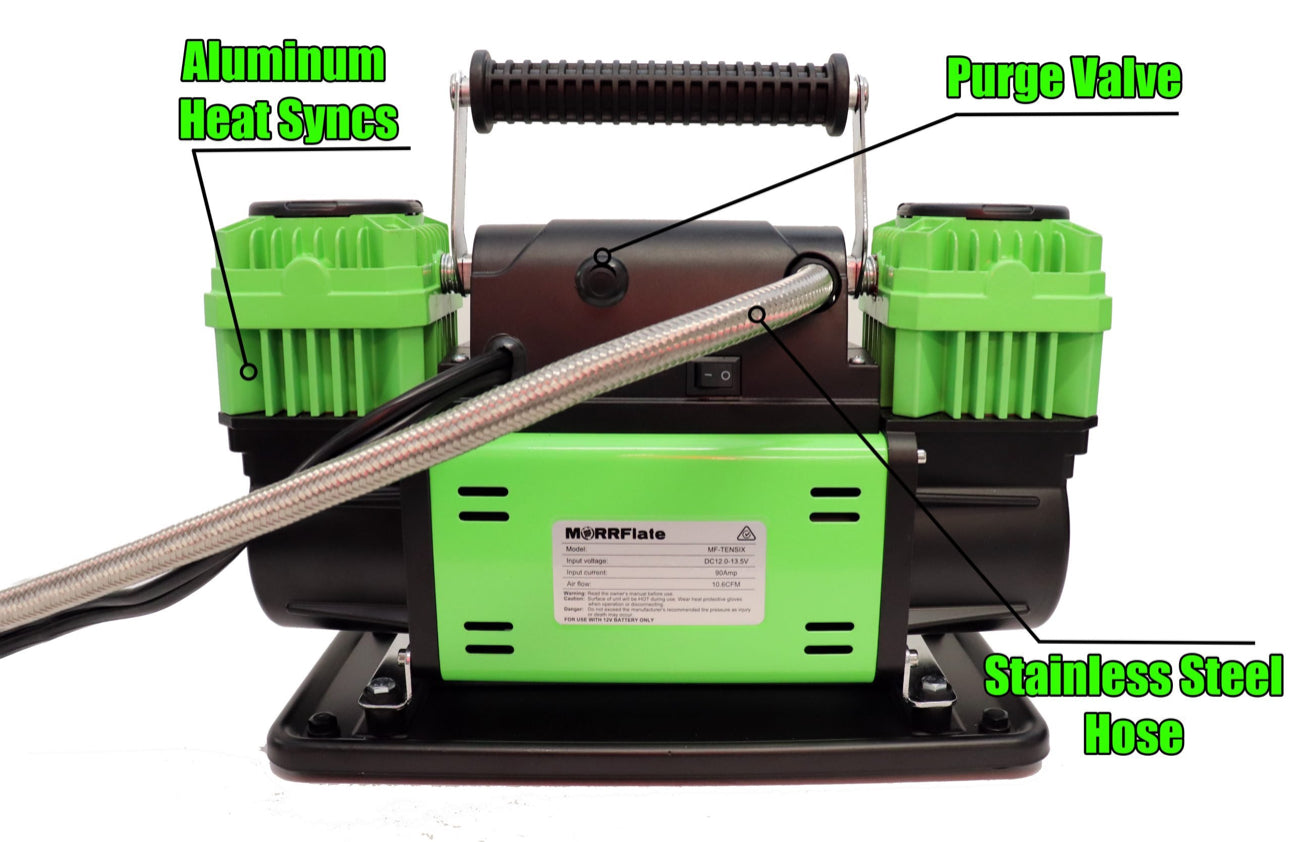

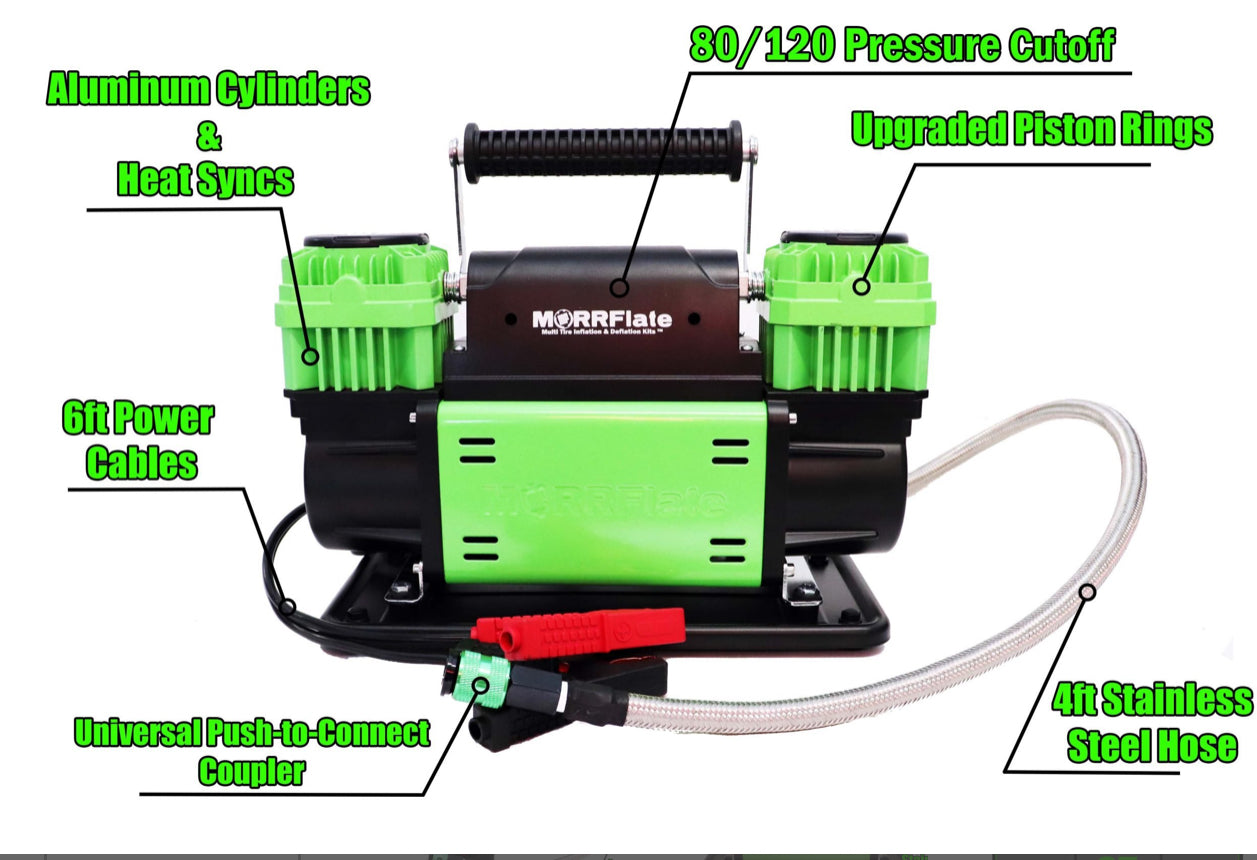

Gen2 Upgrades (Also, now unique to only MORRFlate):

• Stainless Steel Outlet Hose (for better heat dissipation and heat syncing)
• Purge Valve (to release the internal pressures when done)
• Resized Aluminum heat syncs (upgraded from ABS so they actually fit the cylinders and work)
• Internal aluminum cylinders (upgraded from mild steel to dissipate heat better)
• Thermoconductive paste beween the cylinders and heat syncs (to help with heat transfer away from the cylinders)
• New piston rings (better material for wear and heat resistance longevity).
