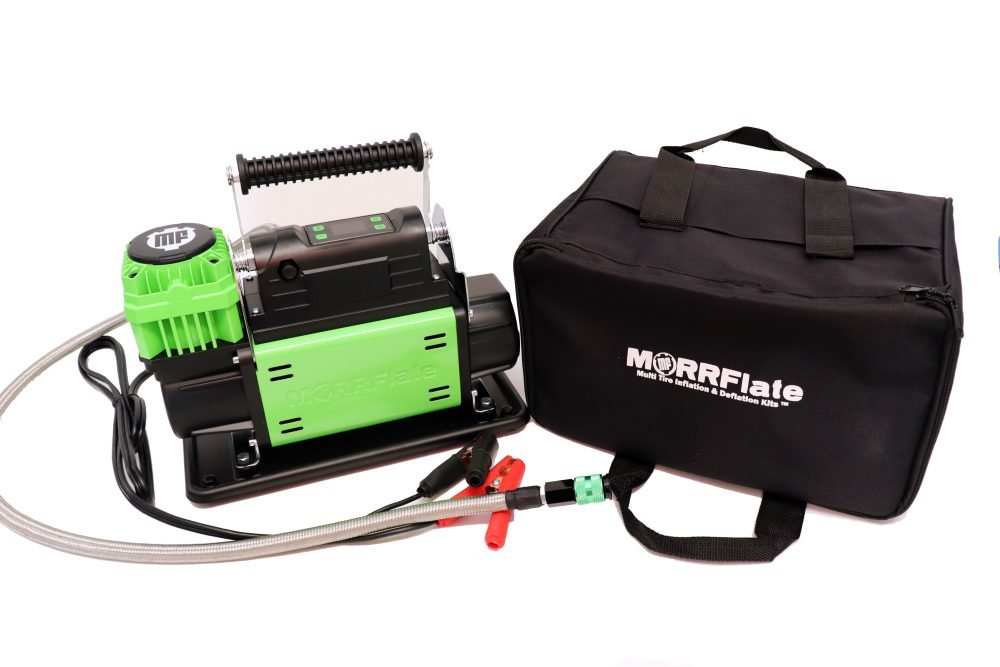

MORRFlate FiveSix™ PSI Pro™ Portable 12v Compressor – Gen2

• 5.6 CFM
• 10-120 psi in Auto Mode
• 1-150 psi in Manual Mode

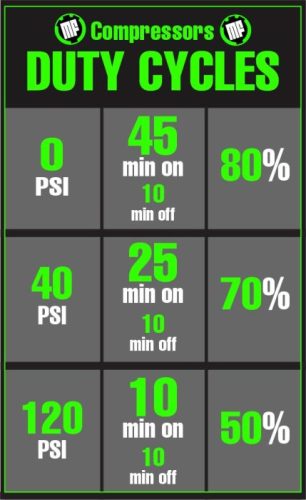

• 80% duty cycle @ 0psi (45min on, 10min off) (3-4 vehicles) (see duty cycle chart)
• Thermal Cut Off Switch
• Purge Valve
• 12v, 70amps peak, ~45 amps running
• ~75 dB from 1ft away
• 13″ L x 9″ H x 6″W
• USA Standard color matched air fitting – Push-to-connect “Universal” Coupler (Works with 1/4″ Industrial, Auto, or Aro fittings)
• 4ft stainless steel braided hose off of the compressor
• 6ft electrical cord, terminates in high amperage alligator clips
• Thicker carrying bag with accessory pockets
• WARNING: Compressors get hot! Recommended to wear the included MORRFlate Groovy Gloves while disconnecting air fittings.
• Please Note: This compressor does not come with any tire hook ups. It is recommended to use a Multi Tire Hose Kit with these compressors since they put out 2x the amount of air that a single tire can accept at a time. Reseating a bead or filling a flat is okay to do with this compressor.

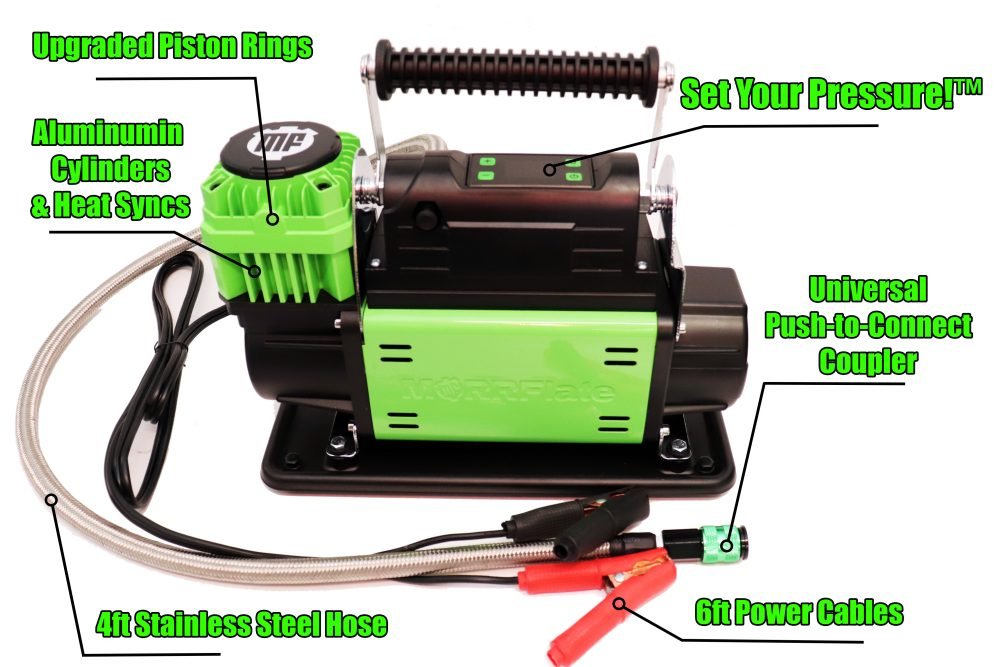

Gen2 Upgrades (Also, now unique to only MORRFlate):

• Stainless Steel Outlet Hose (for better heat dissipation and heat syncing)

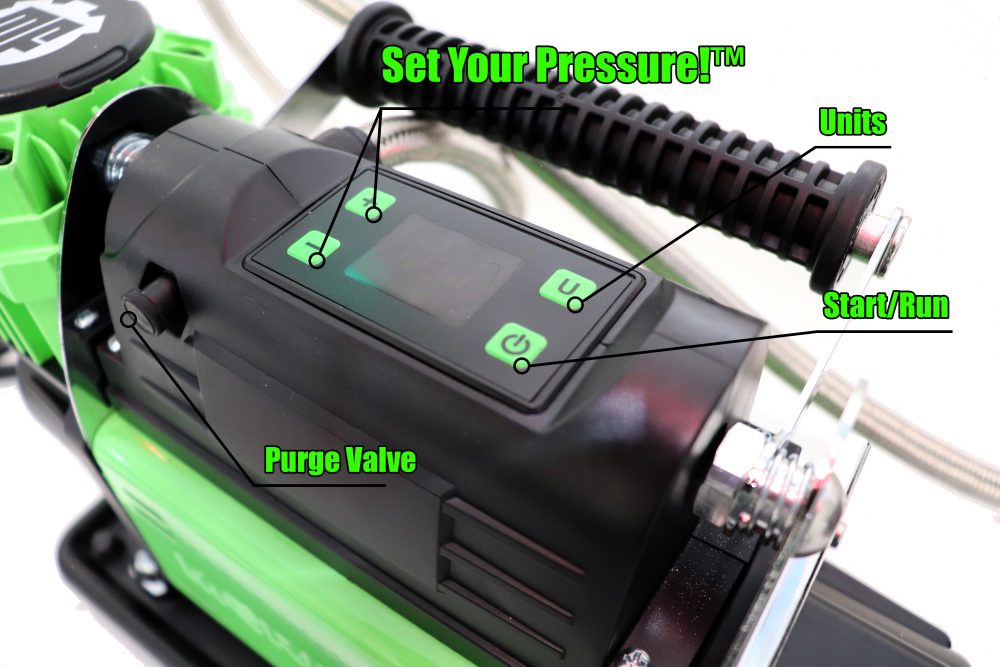

• Purge Valve (to release the internal pressures when done)
• Resized Aluminum heat syncs (upgraded from ABS so they actually fit the cylinders and work)
• Internal aluminum cylinders (upgraded from mild steel to dissipate heat better)
• Thermoconductive paste beween the cylinders and heat syncs (to help with heat transfer away from the cylinders)
• New piston rings (better material for wear and heat resistance longevity).
