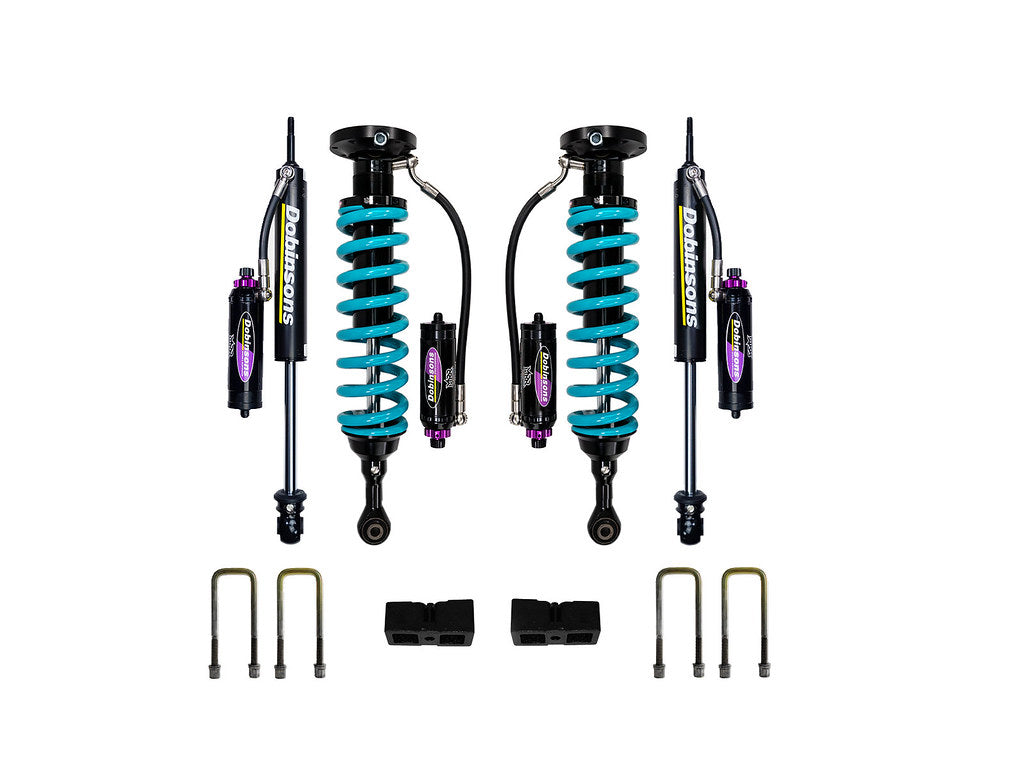

Dobinsons 4x4 2.0" -3.0" MRR 3-Way Adjustable Suspension Kit for Toyota Tundra 2007 to 2021 With Quick Ride Rear - DSSKITMRA61QR - DSSKITMRA61QR

Dobinsons 4x4 2.0" -3.0" MRR 3-Way Adjustable Suspension Kit for Toyota Tundra 2007 to 2021 With Quick Ride Rear - DSSKITMRA61QR - DSSKITMRA61QR

DSSKITMRA61QR

$3,575.00 USD
$3,575.00 USD
Sale Sold out
Title



Lift Height Constant Load Pre Load Setting
50mm - 2.0" 0-85lb Load 90mm
50mm - 2.0" 220-440lb Load 100mm
70mm - 2.75" 220-440lb Load 110mm
75mm - 3.0" 0-85lb Load 103mm
75mm - 3.0" 110-175lb Load 110mm
  • MRA59-A710 Requirements
    • Aftermarket UCAs REQUIRED to clear coilover
    • Aftermarket wheels with +18 Offset or less REQUIRED to avoid reservoir + hose rubbing
  • C92-3016650 Specs
    • Inner Diameter - 3.0"
    • Length - 16"
    • Spring Rate - 650lb/in
  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering
  • 15 Stage Rebound - Control your coils, prevent bucking
  • 60mm CNC Machined High Flow Billet Aluminium Race Piston
  • 66mm / 2.6" Bodies
  • 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
  • Upgraded 3 Stage FKM-HNBR Sealing System
  • TSUGAMITM CNC machined components for precise tolerances
  • ParkerTM Braided High Pressure Hoses
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • T6 6061 Height Adjustable Spring Seat
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
  • 60mm Full 6063 aluminum remote reservoir
  • Lightweight CNC Machined Low Friction floating piston
  • High Quality O.E.M. Grade Natural Rubber Bushings
  • Single Piece Lower Leg
  • EDP Surface Protection
  • Direct Bolt-On Design
  • CNC TIG Precision Welded Body End Mounts
  • Fully Rebuildable Design

MRA59-A710 Instructions
