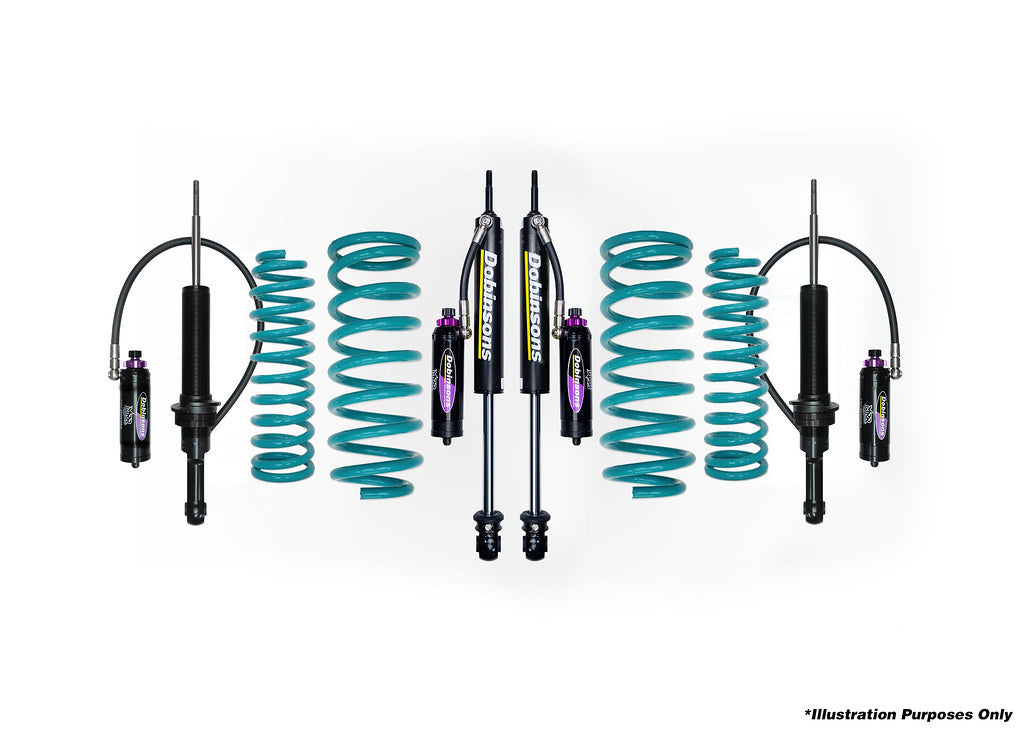

Dobinsons 0-2" MRR 3-way Adjustable Lift Kit for Toyota Land Cruiser 300 Series 2021 on - DSSKITMRALC300 - DSSKITMRALC300
Dobinsons 0-2" MRR 3-way Adjustable Lift Kit for Toyota Land Cruiser 300 Series 2021 on - DSSKITMRALC300 - DSSKITMRALC300
Regular price
$3,300.00 USD
Regular price
Sale price
$3,300.00 USD
Unit price
per
- Front Coil Spring Specs
- C59-818 (Stock Height) 110-220lb Load
- C59-820 (50mm-2") Stock Load
- C59-822 (50mm-2") 110-150lb Load
- C59-824 (50mm-2") 150-220lb Load
- C59-844 (75mm-3") Stock Load
- C59-846 (75mm-3") 120-220lb Load
- Rear Coil Spring Specs
- C59-817V (10mm - 0.5") Stock Load
- C59-819V (30mm - 1.2") 0-110lb Load
- C59-821V (30mm - 1.2") 220-440lb Load
- C59-823V (30mm - 1.2") 550-880lb Load
- C59-825V (30mm - 1.2") 880-1000lb Load
- C59-851V (50mm - 2") 0-110lb Load
- C59-853V (50mm - 2") 550-880lb Load
-
3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
-
10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
-
20 Stage Low Speed Compression - For creepy crawling and cornering
-
15 Stage Rebound - Control your coils, prevent bucking
-
60mm CNC Machined High Flow Billet Aluminium Race Piston
-
3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
-
Upgraded 3 Stage FKM-HNBR Sealing System
-
TSUGAMITM CNC machined components for precise tolerances
-
ParkerTM Braided High Pressure Hoses
-
5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
-
T6 6061 Height Adjustable Spring Seat
-
Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
-
60mm Full 6063 aluminum remote reservoir
-
Lightweight CNC Machined Low Friction floating piston
-
High Quality O.E.M. Grade Natural Rubber Bushings
-
Single Piece Lower Leg
-
EDP Surface Protection
-
Direct Bolt-On Design
-
CNC TIG Precision Welded Body End Mounts
-
Fully Rebuildable Design
-
Due to lower ride height, some vehicles may yield more lift than advertised.
****Coil seat for MRA59-A688 should be set at 222mm(8.74") from the strut bushing eye.
